| Inv. číslo: | 505801 |
| Kategorie: | Pálicí stroje/Lasery > Pálicí stroje/Lasery |

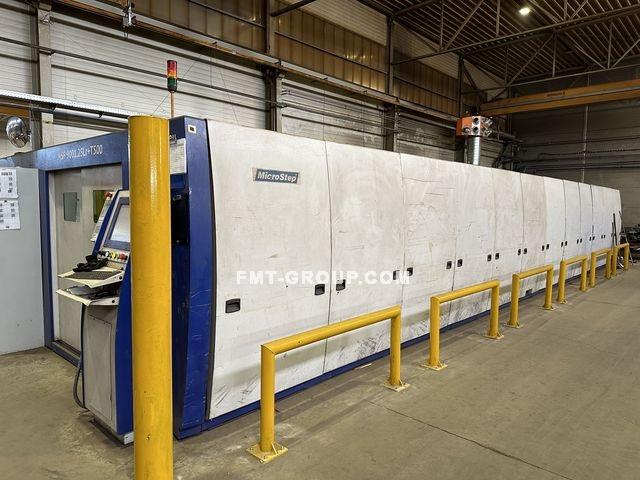

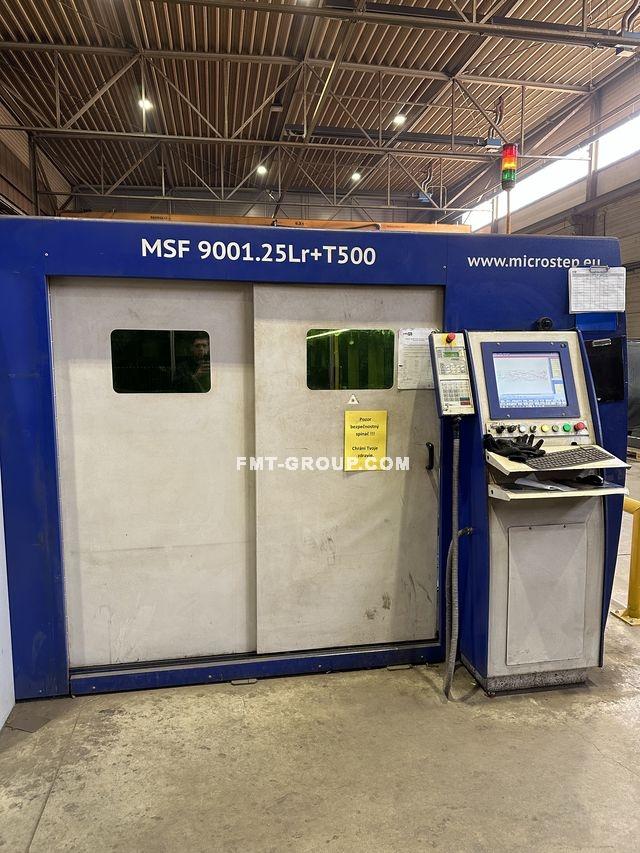

| Typ: | MSF 9001.25Lr+T500 |
| Výrobce: | MicroStep |
| Rok výroby: | 2015 |
| Rok GO: | 2022 |
| Parametry: |
Pracovní rozsah : 9000 x 2500 mm Maximální tloušťka plechu konštrukčný oceľ : 25 mm Rozměry DxŠxV : 6000x2570x23000 |

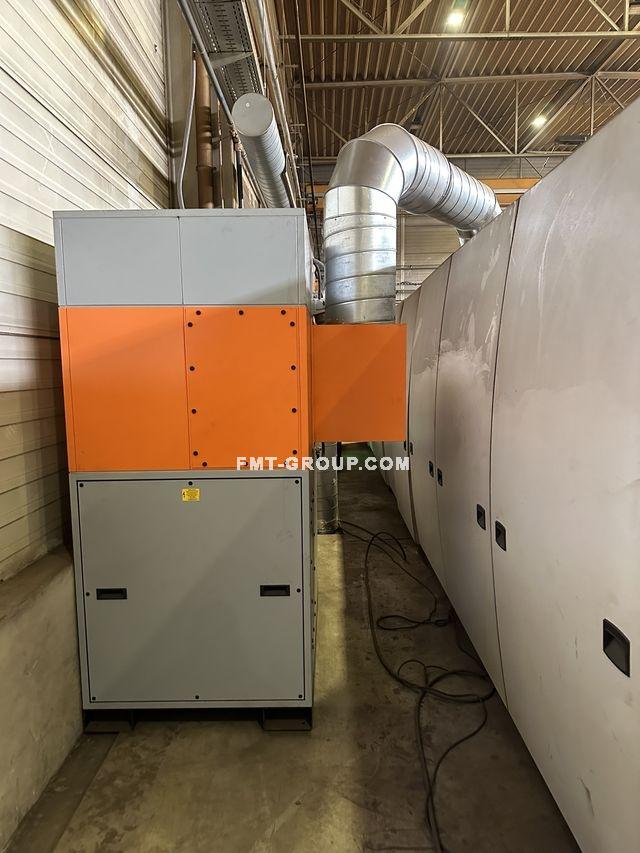

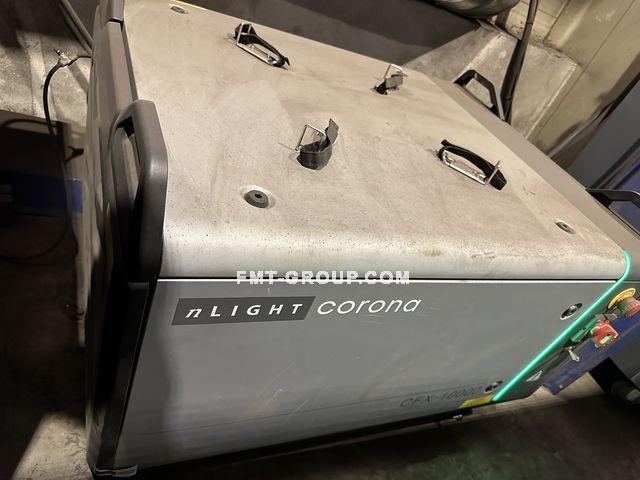

| Popis: | CZ: Stroj v dobrém technickém stavu, v provozu. EN: The machine in a good technical condition, in operation. Inspection and testing after previous agreement. Production 2015 → General maintenance April 2022 - working area 9000 mm x 2500 mm (sheet 9x2.5 m) - time of cutting 24000 mth - Lubrication system: automatic - Beam guidance: via light cable - Extraction: Donaldson DFPR08 – R, Voltage 3X400V/11KW, frequenz 50Hz/ph3, net weight 1300kg Source power: 10kW - Source: nLight CORONA-CFX-10000 - Head: Thermacut EX-TRABEAM-Pro-360 komplet - Positioning speed: up to 130m/min when moving in the direction of one axis 140m/min when moving in both axes The maximum cutting capacity of the source with a power of 10kW: - Up to structural steel of 25 mm MACHINE EQUIPMENT: • Automatic lower slag conveyor • 1x slag drawer • Suction segments under the grate • Pallet table changer 2 tables • Calibration station for bevel cut rotator • Automatic nozzle cleaning • Touch LED panel • Automatic targeting of sheet rotation • Adaptive cutting – the head adapts itself to the sheet (e.g. corrugated sheet) • Remote support • protective glass against lens contamination • camera in the head • 0-point laser sight - Complete technical documentation - Software for programming the machine 2x Asper license - Consumable parts, e.g. (nozzles, head glasses, rings...) -Possible to Bevel cut of rounds, pipes, profiles in separated station near sheet cutting |
